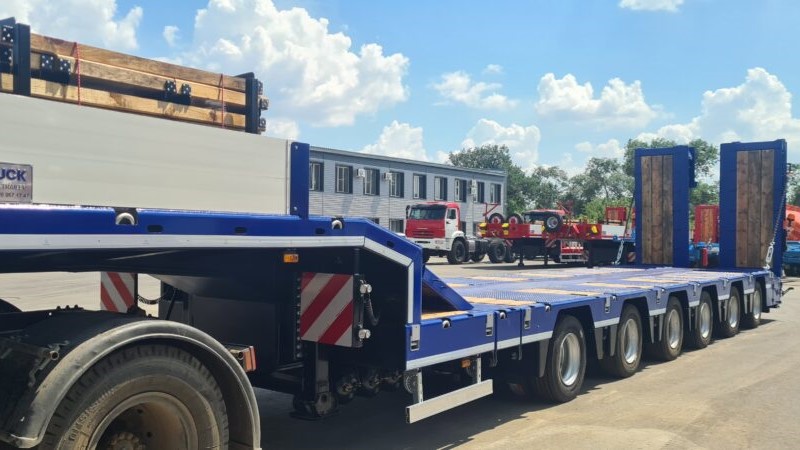

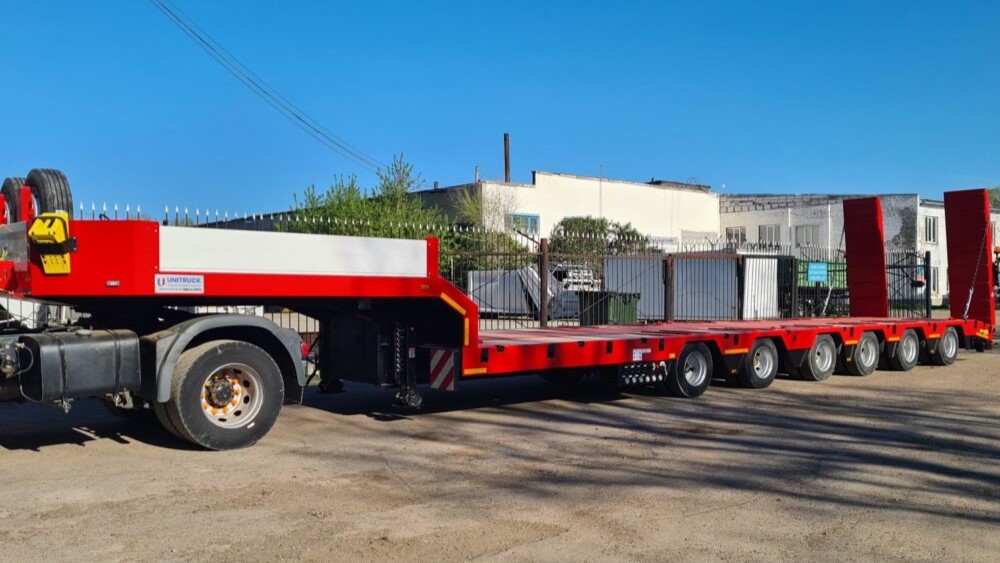

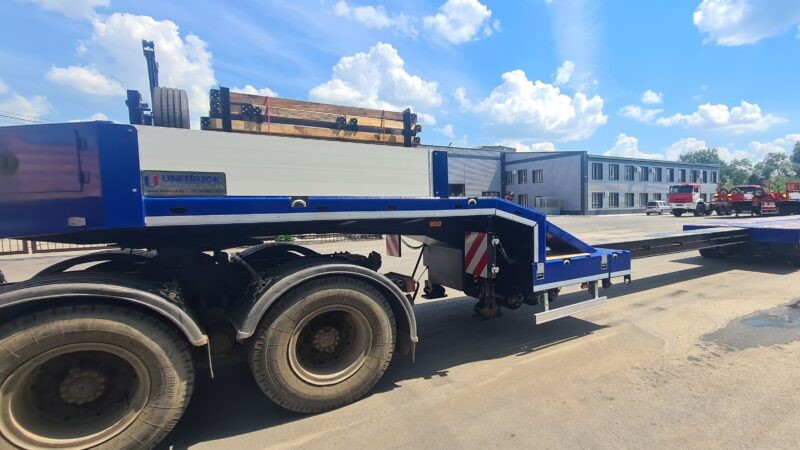

6 AXLE LOWBED SEMI TRAILER

SPECIFICATIONS


We are ready to consider the issue of manufacturing this equipment, according to the technical specifications of the Customer

DIMENSIONS

Length, width, working platform height, fifth wheel height according to customer's request


AXLE SHAFT

6 axle shafts with the capacity of 12-14-16-18 tons

ELEVATING FRONT AXLE SHAFT

Axle lifting system controlled from inside the cab or outside the semi-trailer



ELECTRICAL EQUIPMENT

- It is suitable for SAE standards and Tüv regulations Electricity is provided by 7 pin, 15 pin plug from vehicle
- There are necessary traffic advisory and stoplights on both sides
- There are backlights, brake lights, license plate lamps, trailer reflectors and orange warning lights on the sides
- Flashing beacon
- Oversized Cargo Sign

KING-PIN

2" DIN 74080 and 3.5" DIN 74083 in steel 42 CRM04. Brand – OMS

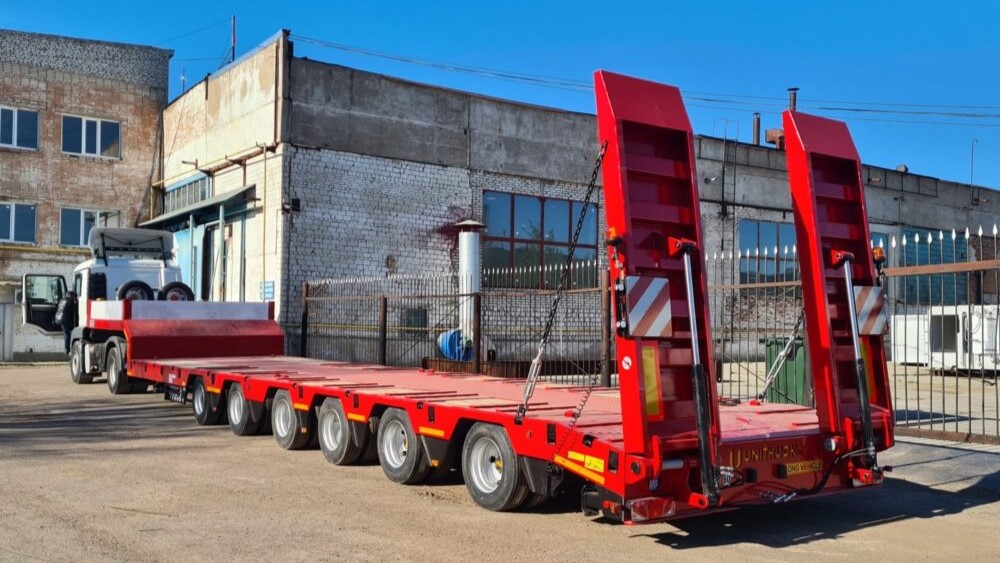

BACK ACCESS RAMP

Back legs with Hydraulic piston

PAINT

Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint

STANDARD ACCESSORIES

- Expanding brackets(300+300 mm)
- 2 x 7 Load binding ring
- 1 x tool closet(under suspension beam)
- 2 x Bike safety bar
- 1 x Tire weld and holder
- 1 x 60 lt capacity plastic water tank
- Double spare tire conveyor

RACK

- Low-Bed rack is welded by submerged welding machine from Spar 18 - 20 mm thick made of steel 10HSND or S700
- Chassis 10 mm thick made of steel 10HSND or S700
- Transverse 8 mm thick units made of steel S700

SUSPENSION

- Pneumatic
- spring balancer

TIRES AND RIMS

235/70 R 17.5
235/75 R 17.5
245/70 R 17.5
295/60 R 22.5
12 R 22.5

BRAKE EQUIPMENT

- Wabco ABS
- Wabco EBS






CONVEYOR LEGS

On the front: 2x25 tons mechanical trailer legs

FLOOR

Sides; diamond embossed plate and solid floor on tires

COLOR

It will be specified according to customer request

OPTIONAL SPECIFICATIONS

- European axle shaft group and all kind of equipments
- Aluminum rims
- Fire extinguisher closet and fire extinguisher tube
- Tire mark according to request
- RAL color codes according to request
- Telescopic extension
- Chassis steel Strenx 700 E
