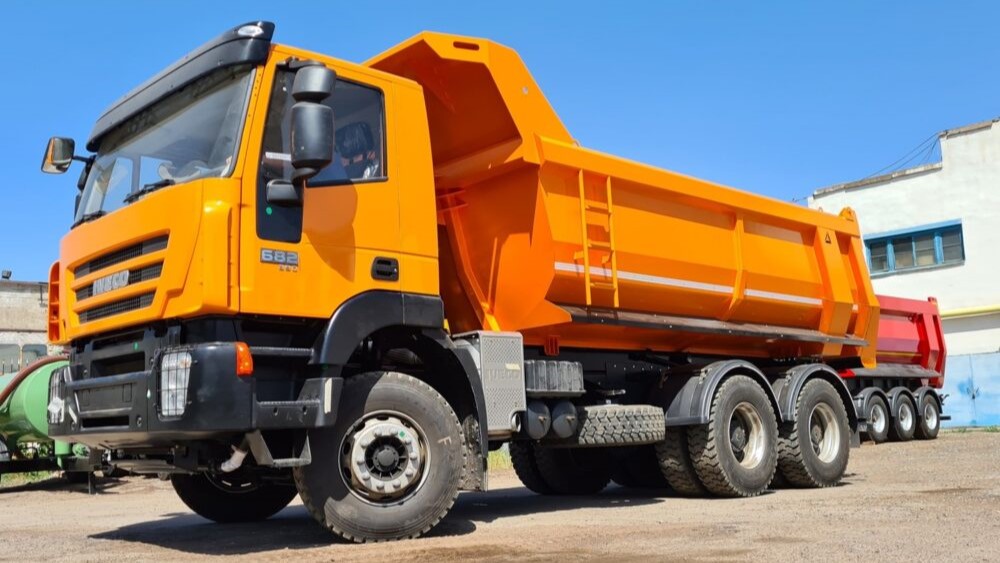

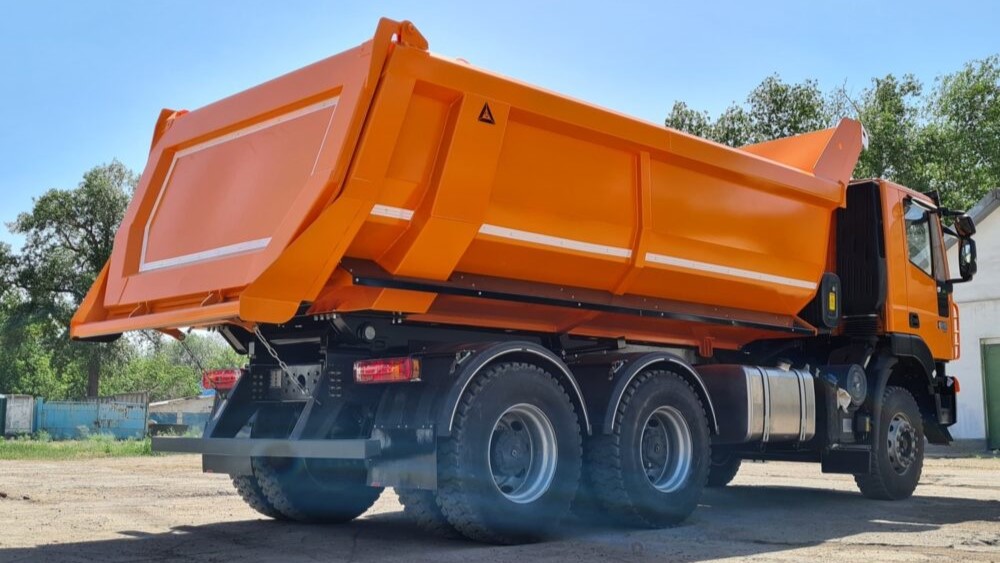

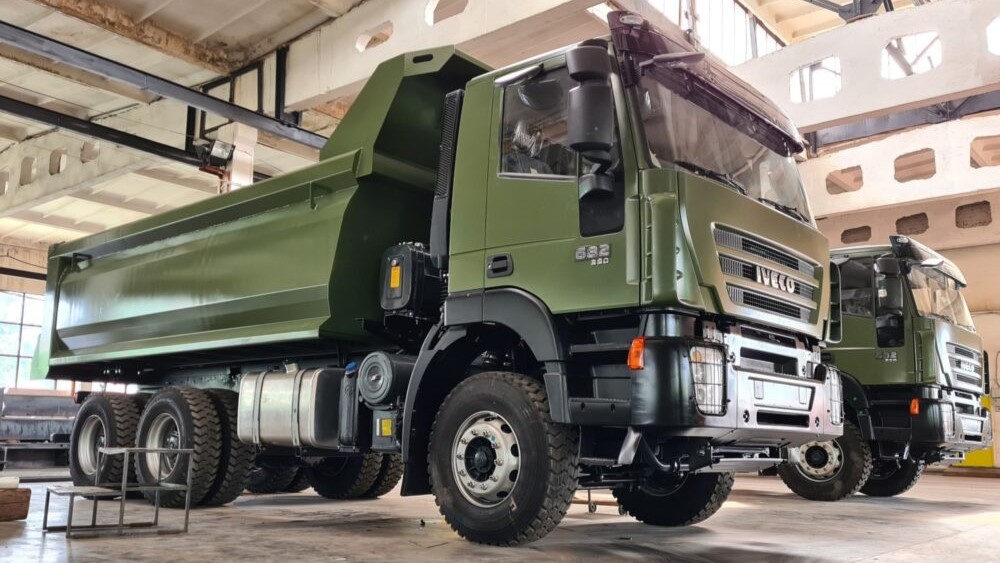

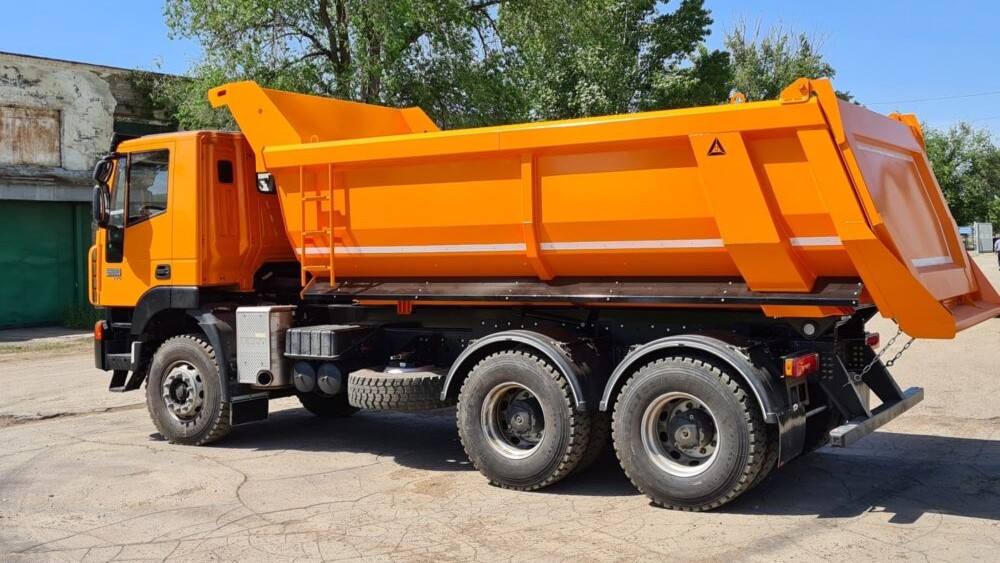

DUMP CARCASS 12 M3 OR 22 M3
SPECIFICATIONS
We are ready to consider the issue of manufacturing this equipment, according to the technical specifications of the Customer
FLOOR SHEET
It is manufactured with 450 HB or ST 52 quality plate
FRONT AND REAR PLATES
It is manufactured with 4 mm 450 HB or ST 52 quality plate
VISORS
Both sides of tipper above on tyre has visors for protect tyres
PAINT
Tipper is painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint
It will be specified according to customer request
It will be specified according to customer request
STANDARD ACCESSORIES
Metal mudguards
Reflector and tipper labels
According to customer request Company logo or sticker lines
Aluminum tipper ladders
Tool box
Plastic or chrome water tank
Reflector and tipper labels
According to customer request Company logo or sticker lines
Aluminum tipper ladders
Tool box
Plastic or chrome water tank
REAR DOOR
Adjustable springs on end cover are connected on the upper side, they can be opened and closed from bottom
SIDE PLATES
It is manufactured with 4 mm 450 HB or ST 52 quality plate
FLOOR RACK
It is supported with using 160 NPU ST 52 quality plate
CYLINDER
Tipper movement is provided by level 4500-5 heavy telescopic cylinder which provides 45o tilt angle.
(LIFT COLD DRAW SEAMLESS PIPE )
Oil reservoir has suction filter, damper pneumatic remote, two speed lowering valve and a limit control security.(Mounted on camion chassis side)
Pump, direction valve, limit valve and other equipments are installed completely
Oil reservoir has suction filter, damper pneumatic remote, two speed lowering valve and a limit control security.(Mounted on camion chassis side)
Pump, direction valve, limit valve and other equipments are installed completely
OPTIONAL SPECIFICATIONS
Hyraulic operating rear door
OPTİM RAEX, HARDOX 450 HB quality plate tipper body chassis
OPTİM RAEX, HARDOX 450 HB quality plate tipper body chassis
