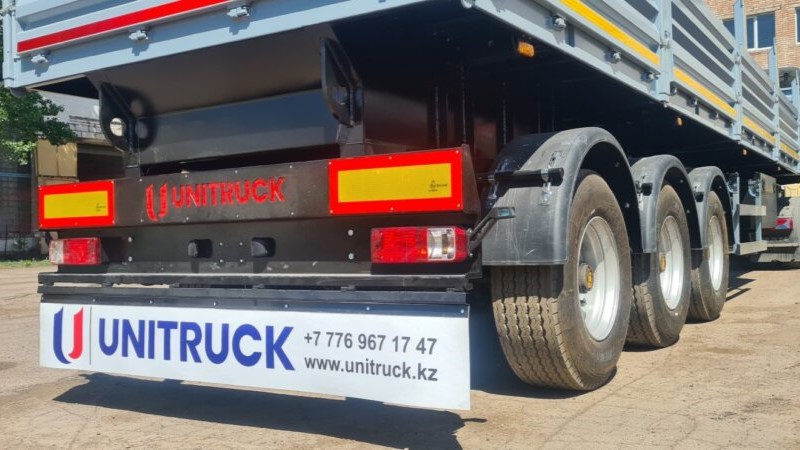

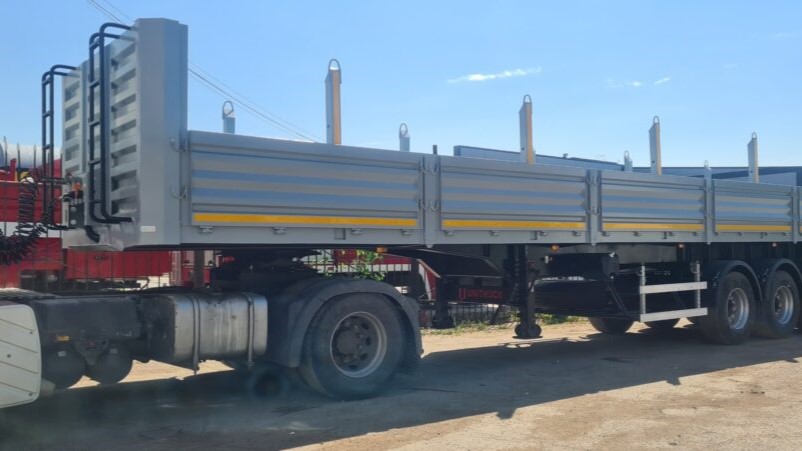

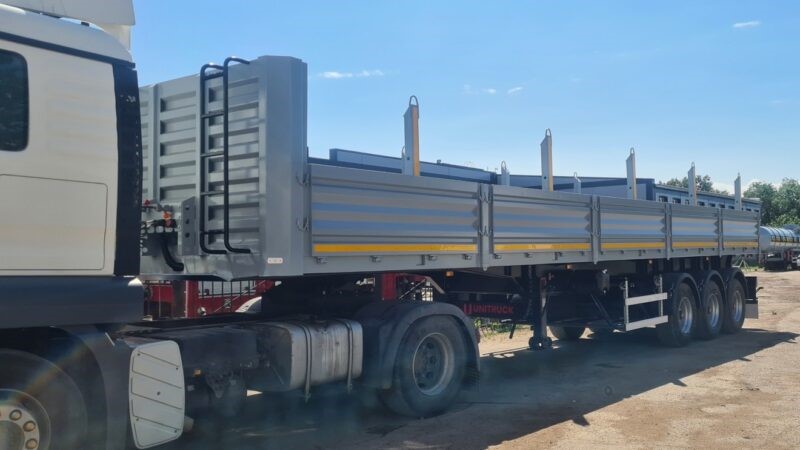

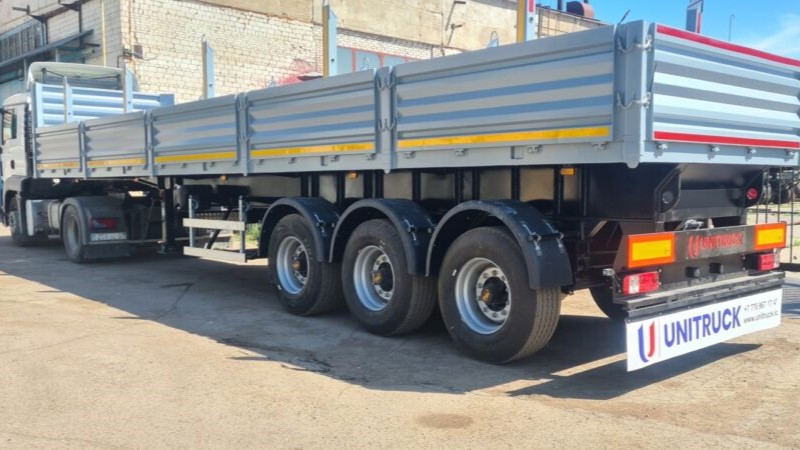

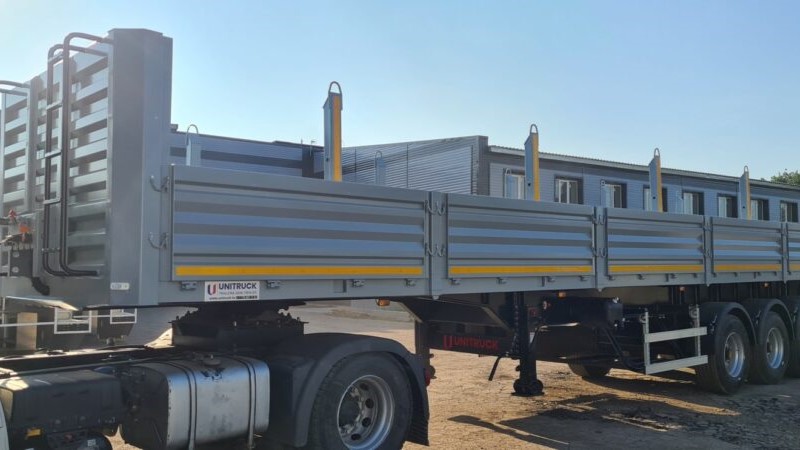

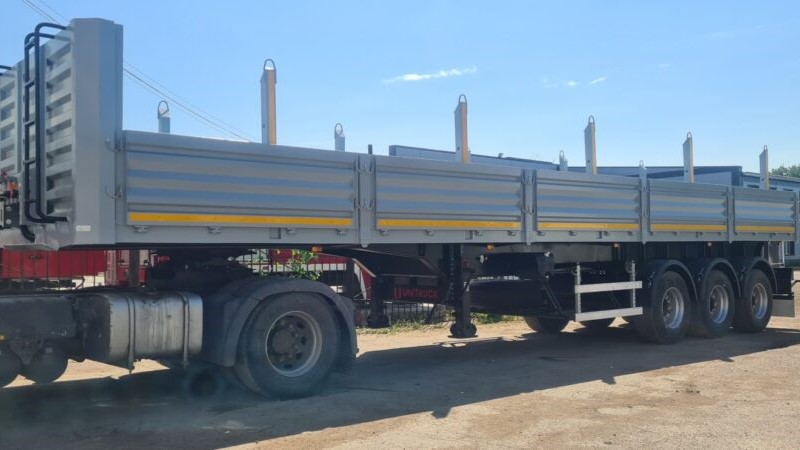

FLATBED SEMI TRAILER 2-4 AXLE

SPECIFICATIONS


We are ready to consider the issue of manufacturing this equipment, according to the technical specifications of the Customer

SUPERSTRUCTURE

- Flat base on the front in 9.000 mm-14.600 mm sizes , also it is 2,440 mm long inside and 2550 mm long outside
- Platform has 4 or 5 caps and they had been installed on the rack
- Caps are connected to each other externally; they are 800-900 mm high
- Floor will be covered with one row of plate and one row of wood
- Periodically placed “Z” axle beams exist in the floor

AXLE SHAFT

3 - 4 axle shafts with the capacity of 12 tons, are used

ELEVATING FRONT AXLE SHAFT

Remote operated elevating system for front axle shaft in cabin

ELECTRICAL EQUIPMENT

- It is suitable for SAE standards and Tüv regulations
- Electricity is provided by 7 pin plug from vehicle
- There are necessary traffic advisory and stoplights on both sides
There are back lights, brake lights, license plate lamps, trailer reflectors and orange colored warning lights on the sides

KING-PIN

2" DIN 74080 and 3.5" DIN 74083 in steel 42 CRM04. Brand – OMS

PAINT

Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint

STANDARD ACCESSORIES

Multi-piece plastic fenders that covers trailing axle tires
2 plate tool boxes
Control Panel(Mob, air clock, access ramp lever)
Plastic water tank
1 basket stare tire conveyor
Aluminum bike impact absorber
Mounting and mounting space





RACK

- Low-Bed rack is welded by submerged welding machine from Spar 14 - 16 mm thick made of steel 10HSND or Domex
- Chassis 4 - 5 mm thick made of steel 10HSND or Domex
- Transverse 4 mm thick units made of steel Domex 700 MC





SUSPENSION

- Pneumatic
- spring balancer

TIRES AND RIMS

385/65 R22,5 tires 6+1
11,75 x 22,5 rims 6+1

BRAKE EQUIPMENT

- Wabco ABS
- Wabco EBS




LEGS

Two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons

COLOR

It will be specified according to customer request

OPTIONAL SPECIFICATIONS

European axle shaft group and all kind of equipments
Import plates(Domex-Hardox)
NPI Section centre side member
Floor is completely MDF or completely covered with plate
Aluminum rims
Double spare tire conveyor
Axle shaft elevator addition
Lift tampon
Fire extinguisher closet and fire extinguisher tube
Additions on caps according to request
Tire mark according to request
RAL color codes according to request
