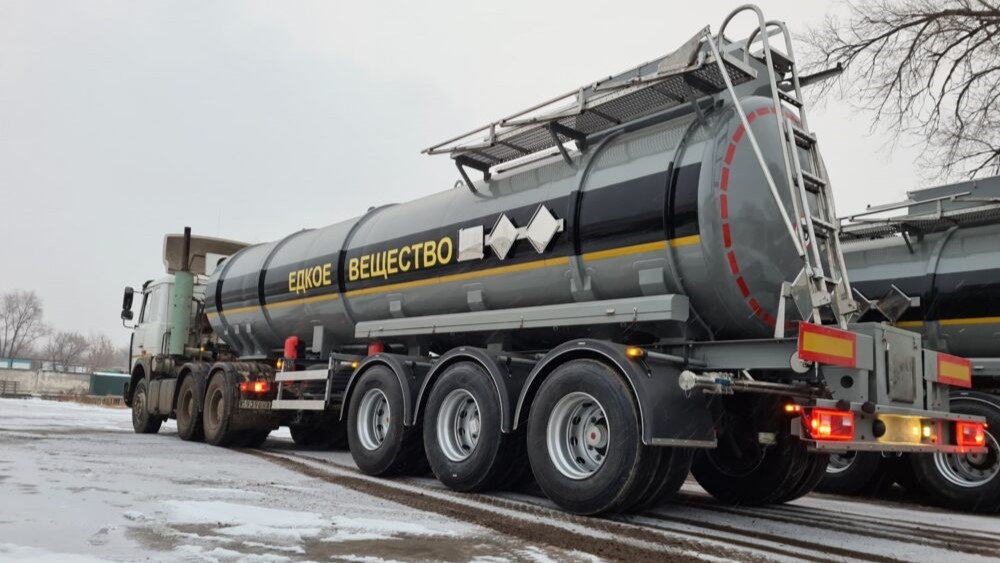

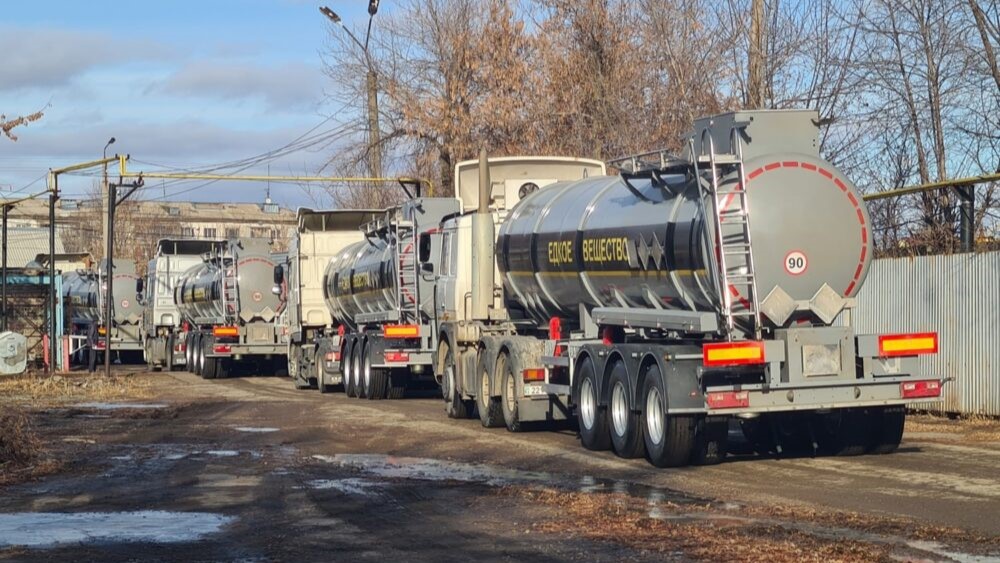

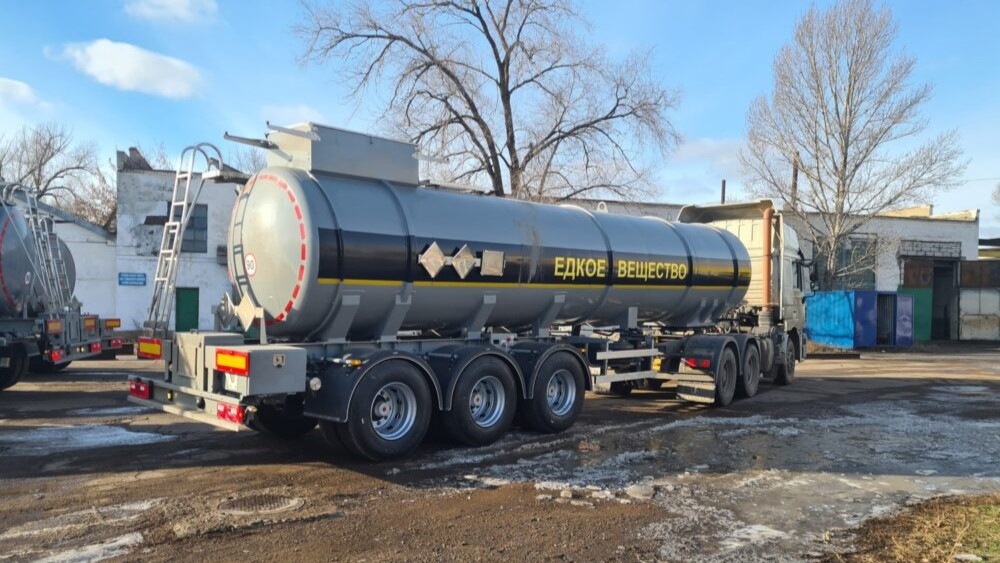

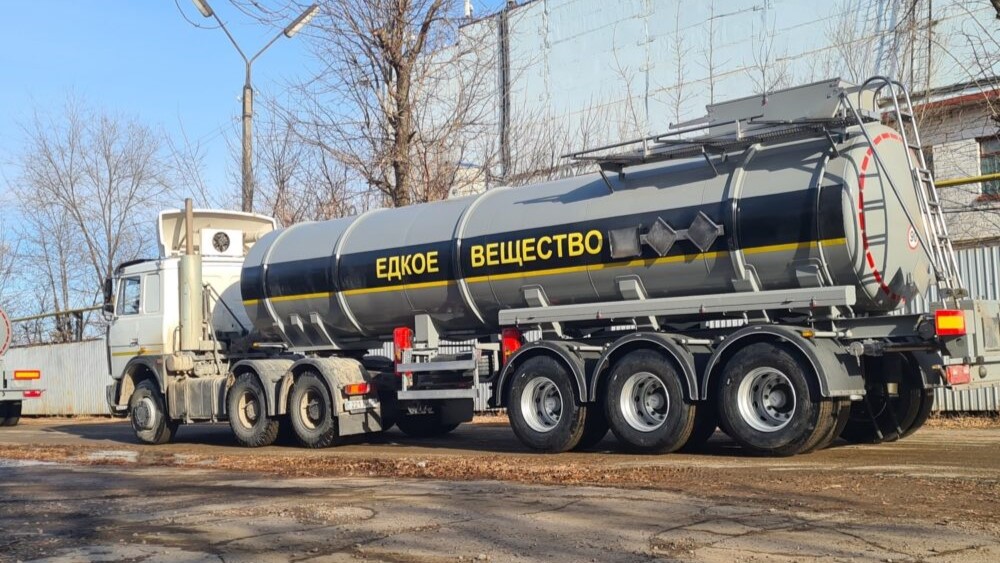

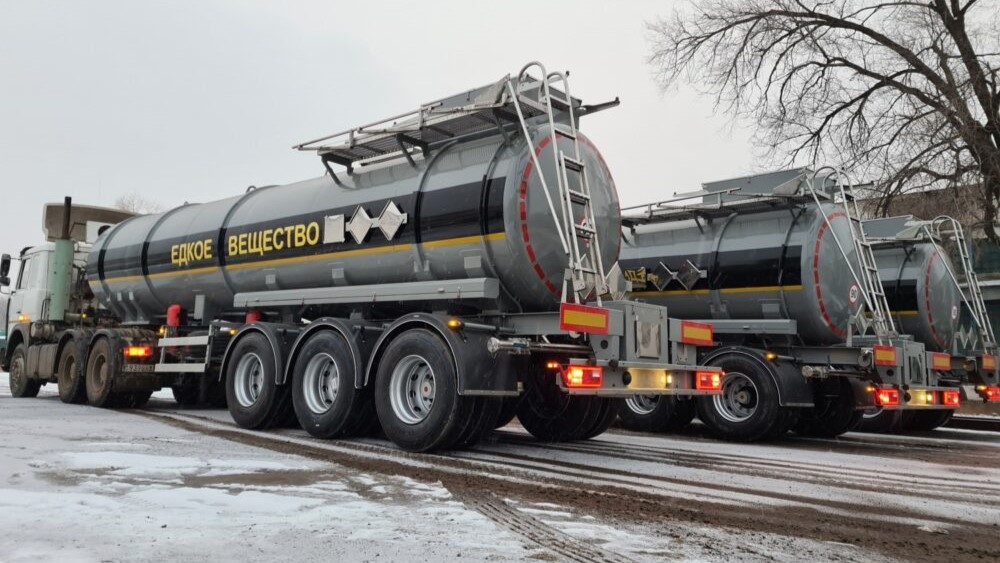

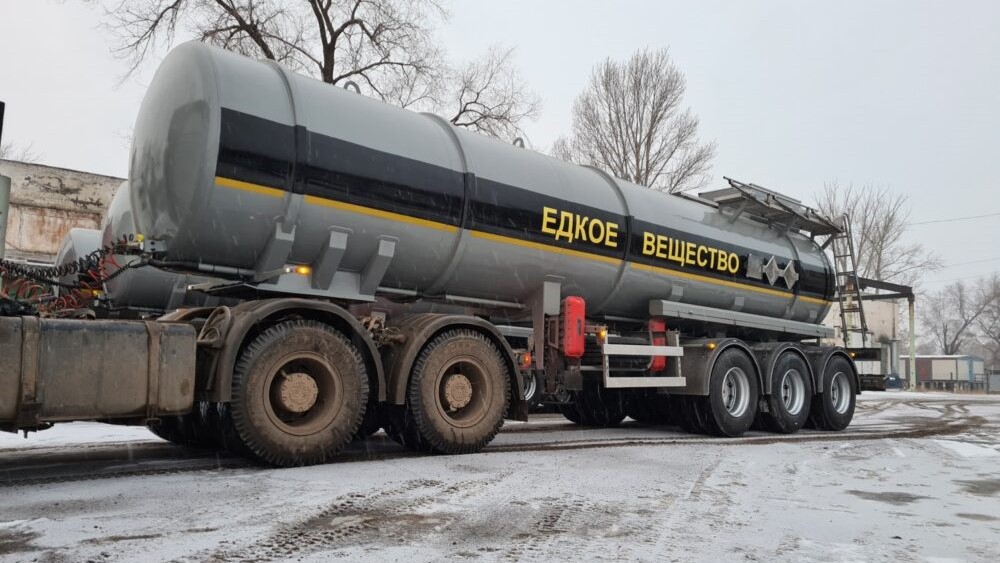

CHROME TANKER SEMI TRAILER

SPECIFICATIONS


We are ready to consider the issue of manufacturing this equipment, according to the technical specifications of the Customer

SUPERSTRUCTURE

It is manufactured in volumes of 20.000-40.000 lt. tankers are ellipse, round, double “D”, bottle type shaped 4 mm – 8 mm chrome nickel plate is used on tanker body (316L, 316TI)





AXLE SHAFT

3 - 4 axle shafts with the capacity of 12 tons, are used

ELEVATING FRONT AXLE SHAFT

Remote operated elevating system for front axle shaft in cabin




ELECTRICAL EQUIPMENT

- It is suitable for SAE standards and Tüv regulations
- Electricity is provided by 7 pin plug from vehicle
- Necessary traffic advisory and stoplights on both sides
- Back lights, brake lights, license plate lamps, trailer reflectors and orange colored warning lights on the sides

KING-PIN

2" DIN 74080 and 3.5" DIN 74083 in steel 42 CRM04. Brand – OMS

PAINT

Tipper is painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint
It will be specified according to customer request

STANDARD ACCESSORIES

Multi-piece plastic fenders that covers trailing axle tires
1 plate unloading valve box
1 plate tool box
1 non-slip floor walking platform
1 ladder (climbed from behind)
2 PVC pipes to carry unloading hoses Control Panel(Mob, air clock, access ramp lever)
Plastic water tank
Roller or basket stare tire conveyor
Aluminum bike impact absorber
Mounting and mounting space

RACK

Strengthened “I” section centre members are welded automatically by submerged welding machine
Spar 12 - 14 mm thick made of steel 10HSND or S700
Chassis 5 - 6 mm thick made of steel 10HSND or S700
Transverse 6 mm thick units made of steel S700
Short back lobe suitable for asphalt paver finisher
Pliable cylinder pipe bumper, suitable for asphalt paver finisher

SUSPENSION

- Pneumatic
- Spring balancer

TIRES AND RIMS

- Tires:
385/65 R22,5
315/80 R22.5
- Rimes:
11,75 x 22,5
22.5х9.00

BRAKE EQUIPMENT

Wabco ABS
Wabco EBS



LEGS

Two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons

COLOR

It will be specified according to customer request


OPTIONAL SPECIFICATIONS

European axle shaft group and all kind of equipments
Double spare tire conveyor with basket
Axle shaft elevator addition
Tire mark according to request
RAL color codes according to request






WE'LL HELP YOU TO CHOOSE THE RIGHT EQUIPMENT

We are ready to consider the issue of manufacturing any of our equipment in accordance with the requirements of the Customer.
Leave a request, our manager will contact you shortly.
