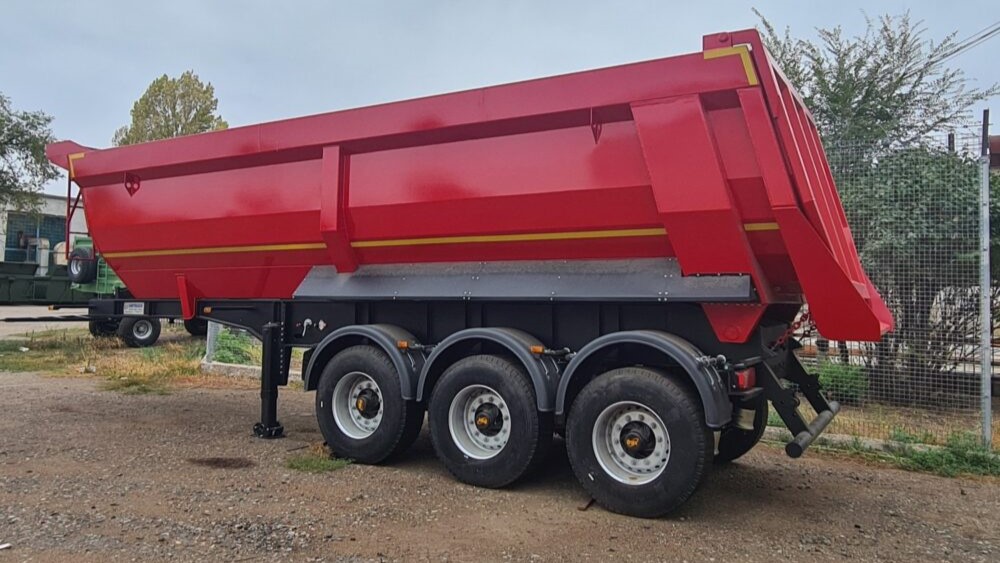

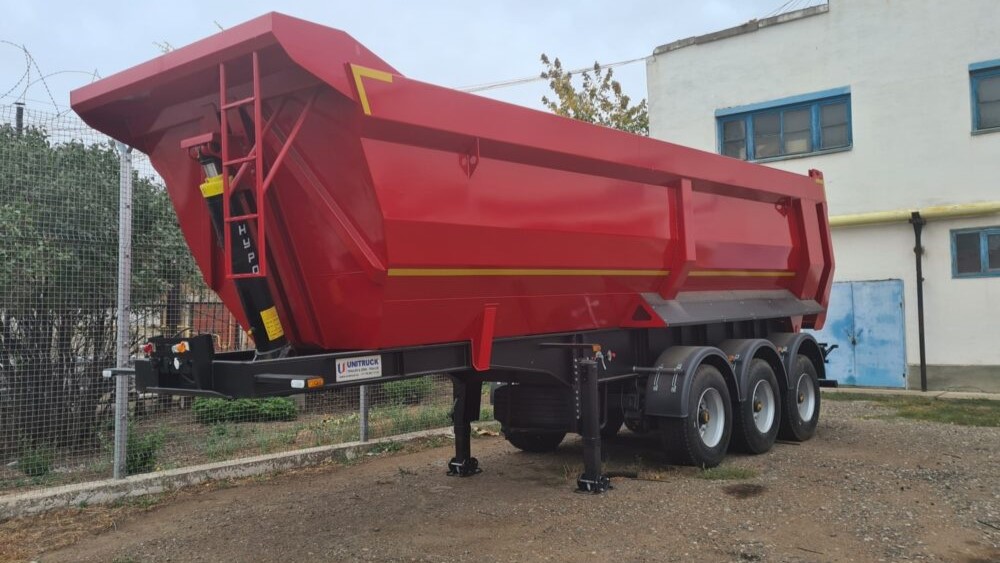

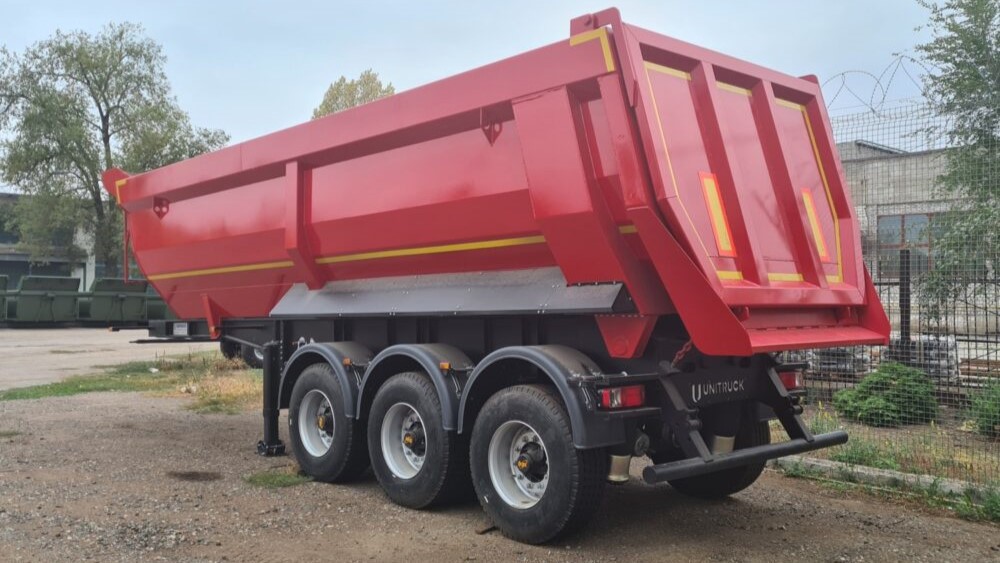

HALF PIPE TYPE DAMPER SEMI TRAILER (22 M3 – 46 M3)
SPECIFICATIONS
We are ready to consider the issue of manufacturing this equipment, according to the technical specifications of the Customer
SUPERSTRUCTURE
Volume from 22 m3 to 46 m3
Damper body is produced from durable steel plate against 450 HB
There are plastic mallets to prevent wearing and noise on the points that contact with rack
Damper body is produced from durable steel plate against 450 HB
There are plastic mallets to prevent wearing and noise on the points that contact with rack
RACK
Strengthened “I” section centre members are welded automatically by submerged welding machine
Spar 14 - 16 mm thick made of steel 10HSND or S700
Chassis 5 mm thick made of steel 10HSND or S700, transverse 6 mm thick units made of steel S700
Short back lobe suitable for asphalt paver finisher
Pliable cylinder pipe bumper, suitable for asphalt paver finisher
Spar 14 - 16 mm thick made of steel 10HSND or S700
Chassis 5 mm thick made of steel 10HSND or S700, transverse 6 mm thick units made of steel S700
Short back lobe suitable for asphalt paver finisher
Pliable cylinder pipe bumper, suitable for asphalt paver finisher
SUSPENSION
- Pneumatic
- Spring balancer
- Spring balancer
ELECTRICAL EQUIPMENT
It is suitable for SAE standards and Tüv regulations
Electricity is provided by 7 pin, 15 pin plug from vehicle
There are back lights, brake lights, license plate lamps, trailer reflectors and orange colored warning lights on the sides
Electricity is provided by 7 pin, 15 pin plug from vehicle
There are back lights, brake lights, license plate lamps, trailer reflectors and orange colored warning lights on the sides
KING-PIN
2" DIN 74080 and 3.5" DIN 74083 in steel 42 CRM04. Brand – OMS
ELEVATING FRONT AXLE SHAFT
Remote operated elevating system for front axle shaft in cabin
STANDARD ACCESSORIES
Multi-piece plastic fenders that covers back axle shaft tires
1 plate tool box
Control Panel(Mob, air clock, access ramp lever)
Plastic water tank
Spare tire conveyor between trailer legs
Mounting and mounting space
1 plate tool box
Control Panel(Mob, air clock, access ramp lever)
Plastic water tank
Spare tire conveyor between trailer legs
Mounting and mounting space
HYDRAULIC

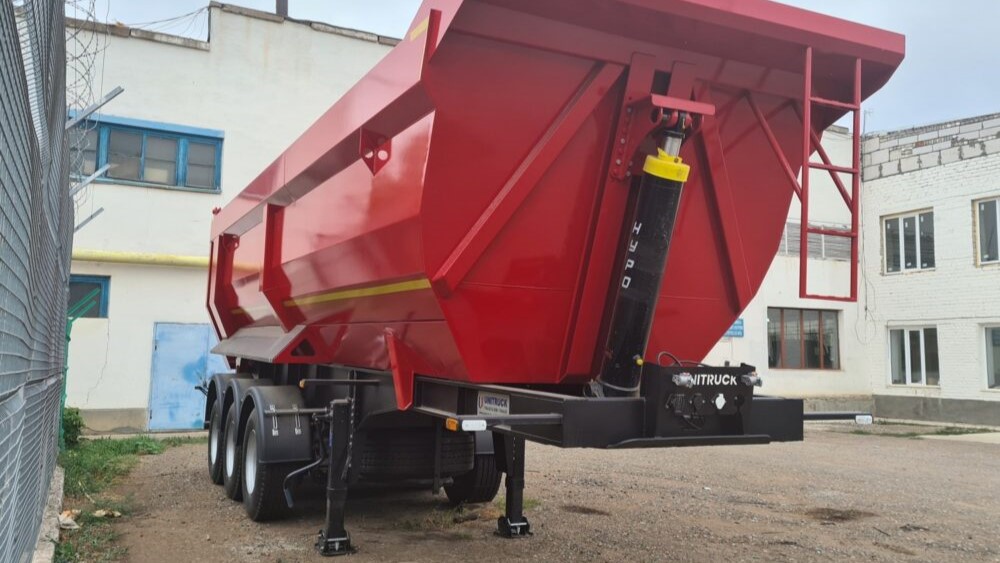

Damper movement is provided by level 5 heavy telescopic cylinder which provides 45° tilt angle (LIFT COLD DRAW SEAMLESS PIPE)
AXLE SHAFT
3 - 4 axle shafts with the capacity of 12 tons, are used
TIRES AND RIMS
Tires:
385/65 R22,5 6+1
Rims:
11,75 x 22,5 rims 6+1
385/65 R22,5 6+1
Rims:
11,75 x 22,5 rims 6+1
BRAKE EQUIPMENT
Wabco ABS
Wabco EBS
Wabco EBS
LEGS
Two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons
PAINT & COLOR
Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint
Specified according to customer request
Specified according to customer request
OPTIONAL SPECIFICATIONS
European axle shaft group and all kind of equipments
Import and Domestic plates (Hardox 450 HB)
Aluminum rims
Axle shaft elevator addition
Company logo is applied according to request
Tire mark according to request
RAL color codes according to request
Chassis Strenx 700
Import and Domestic plates (Hardox 450 HB)
Aluminum rims
Axle shaft elevator addition
Company logo is applied according to request
Tire mark according to request
RAL color codes according to request
Chassis Strenx 700
